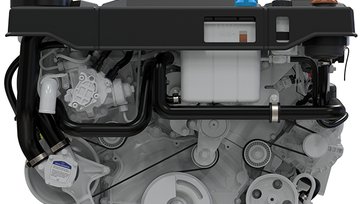

Mercury® Diesel
3.0L (230-270hp)

Potente e compatto

Una nuova definizione del concetto di motore potente, compatto e di facile manutenzione

  • Potenza mhp / kW 270
  • Regime massimo (WOT) 4200
  • Tipo di motore V6
  • Cilindrata (L) 3.0L
  • Air Handling Turbocharged and Aftercooled

Le specifiche mostrate qui potrebbero non essere indicative dell'intera famiglia di motori; clicca sul link "Visualizza tutti i modelli e le specifiche" per visualizzare le specifiche in dettaglio

Visualizza tutti i modelli e le specifiche

Easy-to-Maintain.

Manutenzione semplice

I punti di manutenzione si trovano nella parte frontale del motore diesel da 3 litri di Mercury, una soluzione che semplifica i periodici interventi di manutenzione. I punti di manutenzione relativi a olio, liquido refrigerante, scatola fusibili, filtro acqua salata, olio del piede (solo versione entrofuoribordo) ed il liquido per servosterzo (solo versione entrofuoribordo) si trovano nella parte anteriore del motore, proprio accanto al programma di manutenzione con codifica a colori, al fine di fornire linee guida comprensibili e di agevolarne l’accesso.

Redefining the Standard.

Ridefinire gli standard

Il nuovo motore diesel Common-Rail da 3 litri di Mercury vanta performance eccezionali e significative migliorie in termini di accelerazione e velocità di punta: tutto questo grazie a un nuovo turbocompressore a geometria variabile raffreddato ad acqua (VGT). Combinata con un sistema di controllo del motore all’avanguardia, questa soluzione riduce il tempo necessario per entrare in planata e garantisce prestazioni straordinarie.

Reliability + Performance.

Affidabilità e performance

Navigare è ancora più piacevole se a bordo c’è un motore che funziona bene giorno dopo giorno. Il motore diesel da 3 litri di Mercury viene assemblato in una struttura di produzione all’avanguardia, con soluzioni moderne in fatto di qualità e di controllo a garanzia della massima affidabilità del prodotto. Combinando l’affidabilità e le performance del motore diesel da 3 litri di Mercury con l’esclusiva tecnologia SmartCraft e una gamma completa di accessori, si ottiene un’esperienza di navigazione ineguagliabile.

Quiet Performer.

Performante ma silenzioso

Il motore da 3 litri di Mercury offre performance esaltanti, riducendo al minimo il rumore e le vibrazioni, mentre il filtro dell’aria funge da silenziatore aggiuntivo eliminando il rumore del turbo che solitamente si associa ai motori diesel. I supporti del motore sono concepiti per ridurre le vibrazioni al minimo. Fare conversazione durante una gita in barca non è mai stato così semplice.

Mercury Joystick Piloting for Inboards.

Mercury Joystick Piloting for Inboards

L’unico sistema di manovra con joystick compatibile con motori entrobordo e da sport da traino a benzina o diesel.

L’unico sistema di manovra con joystick per imbarcazioni entrobordo monomotore e bimotore.

Molte caratteristiche disponibili per rendere le tue emozioni per gli sport acquatici ancora più straordinarie - per saperne di più fai clic qui!

Resistencia a la corrosión.

Resistenza alla corrosione.

I motori diesel Mercury sono dotati di sistemi anticorrosione all'avanguardia, con un sistema a circuito chiuso raffreddato ad acqua con controllo termostatico. L'olio motore, l'olio del piede e il fluido dello sterzo raffreddati ad acqua riducono le temperature del motore, prolungandone la durata. Il sistema SeaCore è disponibile per la massima protezione dall'acqua salmastra.

Specifiche tecniche

Mercury® Diesel: 3.0L (230-270hp)

  • Potenza mhp / kW
    • 270
    Alesaggio e corsa
    • 3.27 x 6.62" / 83 x 92 mm
    Regime massimo (WOT)
    • 4200
    Tipo di motore
    • V6
    Cilindrata (L)
    • 3.0L
    Dry Weight (engine only)
    • 348 Kg (767 lbs)
    Dimensioni (L x P x A)
    • 36.6 x 33.5 x 30.0" / 931 x 851 x 784 mm
    Peak Torque
    • 594 Nm @ 2200 rpm
    Air Handling
    • Turbocharged and Aftercooled
    Fuel System
    • High pressure common rail
    Rotation
    • Counter clockwise facing flywheel
    Compression Ratio
    • 16.5:1
    Fuel Pre-filtration requirement
    • Not required
    Fuel lift pump
    • On engine
    High pressure fuel pump
    • Bosch CP 4.2 w/ integrated gear lift pump
    Valves per Cylinder
    • 4
    Pistons
    • Oil jet cooled
    Fuel injectors
    • Bosch CRS 2.20 (Solenoid)
    Glow Plugs
    • Standard equipment with Bosch glow plug control unit (GCU)
    Air inlet (Starboard Rear)
    • Filtered and silenced
    Turbocharger
    • Honeywell VGT
    Engine and turbocharger cooling
    • Closed cooled
    Coolers
    • Aftercooler, Engine Coolant, Engine Oil, Power Steering / Gear Oil and Fuel - All are tube and shell
    Seawater pump inlet size
    • 38 mm (1.5 in)
    Oil sump volume
    • 8.5 L
    Dipstick range
    • 1.0 L
    Oil maintenance interval
    • 200 hours or annually
    Coolant Volume
    • 12 L
    Flywheel size
    • 290 mm (11.42 in) SAE 8
    Electrical system
    • 12 V, 110 A w/ conveniently located battery power and ground studs
    MerCathode (Sterndrive only)
    • Engine mounted
    Engine Stop
    • ECU Controlled
    Engine Control Unit (ECU)
    • Bosch EDC17
    Sensors
    • Crank & cam position, intake manifold pressure/temp, compressor outlet temp, exhaust gas temp, fuel temp, rail pressure, water in fuel (WIF), oil pressure/temp, coolant temp, seawater pressure/temp, atmospheric pressure
    Throttle and shift
    • Mercury DTS or Mechanical Cable
    Helm and gauge compatibility
    • Mercury SmartCraft
    Mercury Joystick Piloting
    • Compatible with Joystick Piloting for Inboards
    Inboard: ZF 63A
    • 1.21, 1.56, 2.03, 2.52, 2.68
    Inboard: ZF 63
    • 1.25, 1.75, 2.78
    Inboard: ZF 68IV
    • 1.29, 1.56, 1.99
    Inboard: ZF 45C
    • 1
    Stampa Confronta con altri prodotti
  • Potenza mhp / kW
    • 270
    Alesaggio e corsa
    • 3.27 x 6.62" / 83 x 92 mm
    Regime massimo (WOT)
    • 4200
    Tipo di motore
    • V6
    Cilindrata (L)
    • 3.0L
    Dry Weight (engine only)
    • 358 Kg (789 lbs)
    Dimensioni (L x P x A)
    • 36.7 x 33.4 x 32.0" / 847 x 849 x 813 mm
    Peak Torque
    • 594 Nm @ 2200 rpm
    Air Handling
    • Turbocharged and Aftercooled
    Fuel System
    • High pressure common rail
    Rotation
    • Counter clockwise facing flywheel
    Compression Ratio
    • 16.5:1
    Fuel Pre-filtration requirement
    • Not required
    Fuel lift pump
    • On engine
    High pressure fuel pump
    • Bosch CP 4.2 w/ integrated gear lift pump
    Valves per Cylinder
    • 4
    Pistons
    • Oil jet cooled
    Fuel injectors
    • Bosch CRS 2.20 (Solenoid)
    Glow Plugs
    • Standard equipment with Bosch glow plug control unit (GCU)
    Air inlet (Starboard Rear)
    • Filtered and silenced
    Turbocharger
    • Honeywell VGT
    Engine and turbocharger cooling
    • Closed cooled
    Coolers
    • Aftercooler, Engine Coolant, Engine Oil, Power Steering / Gear Oil and Fuel - All are tube and shell
    Seawater pump inlet size
    • 38 mm (1.5 in)
    Oil sump volume
    • 8.5 L
    Dipstick range
    • 1.0 L
    Oil maintenance interval
    • 200 hours or annually
    Coolant Volume
    • 12 L
    Flywheel size
    • 290 mm (11.42 in) SAE 8
    Electrical system
    • 12 V, 110 A w/ conveniently located battery power and ground studs
    MerCathode (Sterndrive only)
    • Engine mounted
    Engine Stop
    • ECU Controlled
    Engine Control Unit (ECU)
    • Bosch EDC17
    Sensors
    • Crank & cam position, intake manifold pressure/temp, compressor outlet temp, exhaust gas temp, fuel temp, rail pressure, water in fuel (WIF), oil pressure/temp, coolant temp, seawater pressure/temp, atmospheric pressure
    Throttle and shift
    • Mercury DTS or Mechanical Cable
    Helm and gauge compatibility
    • Mercury SmartCraft
    Mercury Joystick Piloting
    • Compatible with Joystick Piloting for Sterndrives (Axius)
    Sterndrive: Mercury Bravo One X
    • 1.36, 1.5, 1.65
    Sterndrive: Mercury Bravo One X SeaCore
    • 1.36, 1.50, 1.65
    Sterndrive: Mercury Bravo One XR
    • 1.35, 1.50
    Sterndrive: Mercury Bravo Two X
    • 1.50, 1.65, 1.81, 2.00
    Sterndrive: Mercury Bravo Two X SeaCore
    • 1.50, 1.65, 1.81, 2.00
    Sterndrive: Mercury Bravo Two XR
    • 1.65
    Sterndrive: Mercury Bravo Three X
    • 1.36, 1.50, 1.65, 1.81, 2.00
    Sterndrive: Mercury Bravo Three X SeaCore
    • 1.36, 1.50, 1.65, 1.81, 2.00
    Sterndrive: Mercury Bravo Three XR
    • 1.65, 1.81, 2.00
    Sterndrive: Mercury Bravo Three XR SeaCore
    • 1.65, 1.81
    Peso (solo motore)
    • 358 Kg (789 lbs)
    Stampa Confronta con altri prodotti
  • Potenza mhp / kW
    • 230
    Alesaggio e corsa
    • 3.27 x 6.62" / 83 x 92 mm
    Regime massimo (WOT)
    • 4200
    Tipo di motore
    • V6
    Cilindrata (L)
    • 3.0L
    Dry Weight (engine only)
    • 348 Kg (767 lbs)
    Dimensioni (L x P x A)
    • 36.6 x 33.5 x 30.0" / 931 x 851 x 784 mm
    Peak Torque
    • 503 Nm @ 2200 rpm
    Air Handling
    • Turbocharged and Aftercooled
    Fuel System
    • High pressure common rail
    Rotation
    • Counter clockwise facing flywheel
    Compression Ratio
    • 16.5:1
    Fuel Pre-filtration requirement
    • Not required
    Fuel lift pump
    • On engine
    High pressure fuel pump
    • Bosch CP 4.2 w/ integrated gear lift pump
    Valves per Cylinder
    • 4
    Pistons
    • Oil jet cooled
    Fuel injectors
    • Bosch CRS 2.20 (Solenoid)
    Glow Plugs
    • Standard equipment with Bosch glow plug control unit (GCU)
    Air inlet (Starboard Rear)
    • Filtered and silenced
    Turbocharger
    • Honeywell VGT
    Engine and turbocharger cooling
    • Closed cooled
    Coolers
    • Aftercooler, Engine Coolant, Engine Oil, Power Steering / Gear Oil and Fuel - All are tube and shell
    Seawater pump inlet size
    • 38 mm (1.5 in)
    Oil sump volume
    • 8.5 L
    Dipstick range
    • 1.0 L
    Oil maintenance interval
    • 200 hours or annually
    Coolant Volume
    • 12 L
    Flywheel size
    • 290 mm (11.42 in) SAE 8
    Electrical system
    • 12 V, 110 A w/ conveniently located battery power and ground studs
    Engine Stop
    • ECU Controlled
    Engine Control Unit (ECU)
    • Bosch EDC17
    Sensors
    • Crank & cam position, intake manifold pressure/temp, compressor outlet temp, exhaust gas temp, fuel temp, rail pressure, water in fuel (WIF), oil pressure/temp, coolant temp, seawater pressure/temp, atmospheric pressure
    Throttle and shift
    • Mercury DTS or Mechanical Cable
    Helm and gauge compatibility
    • Mercury SmartCraft
    Mercury Joystick Piloting
    • Compatible with Joystick Piloting for Inboards
    Inboard: ZF 63A
    • 1.21, 1.56, 2.03, 2.52, 2.68
    Inboard: ZF 63
    • 1.25, 1.75, 2.78
    Inboard: ZF 68IV
    • 1.29, 1.56, 1.99
    Inboard: ZF 45C
    • 1
    Stampa Confronta con altri prodotti
  • Potenza mhp / kW
    • 230
    Alesaggio e corsa
    • 3.27 x 6.62" / 83 x 92 mm
    Regime massimo (WOT)
    • 4200
    Tipo di motore
    • V6
    Cilindrata (L)
    • 3.0L
    Dry Weight (engine only)
    • 358 Kg (789 lbs)
    Dimensioni (L x P x A)
    • 36.7 x 33.4 x 32.0" / 847 x 849 x 813 mm
    Peak Torque
    • 503 Nm @ 2200 rpm
    Air Handling
    • Turbocharged and Aftercooled
    Fuel System
    • High pressure common rail
    Rotation
    • Counter clockwise facing flywheel
    Compression Ratio
    • 16.5:1
    Fuel Pre-filtration requirement
    • Not required
    Fuel lift pump
    • On engine
    High pressure fuel pump
    • Bosch CP 4.2 w/ integrated gear lift pump
    Valves per Cylinder
    • 4
    Pistons
    • Oil jet cooled
    Fuel injectors
    • Bosch CRS 2.20 (Solenoid)
    Glow Plugs
    • Standard equipment with Bosch glow plug control unit (GCU)
    Air inlet (Starboard Rear)
    • Filtered and silenced
    Turbocharger
    • Honeywell VGT
    Engine and turbocharger cooling
    • Closed cooled
    Coolers
    • Aftercooler, Engine Coolant, Engine Oil, Power Steering / Gear Oil and Fuel - All are tube and shell
    Seawater pump inlet size
    • 38 mm (1.5 in)
    Oil sump volume
    • 8.5 L
    Dipstick range
    • 1.0 L
    Oil maintenance interval
    • 200 hours or annually
    Coolant Volume
    • 12 L
    Flywheel size
    • 290 mm (11.42 in) SAE 8
    Electrical system
    • 12 V, 110 A w/ conveniently located battery power and ground studs
    MerCathode (Sterndrive only)
    • Engine mounted
    Engine Stop
    • ECU Controlled
    Engine Control Unit (ECU)
    • Bosch EDC17
    Sensors
    • Crank & cam position, intake manifold pressure/temp, compressor outlet temp, exhaust gas temp, fuel temp, rail pressure, water in fuel (WIF), oil pressure/temp, coolant temp, seawater pressure/temp, atmospheric pressure
    Throttle and shift
    • Mercury DTS or Mechanical Cable
    Helm and gauge compatibility
    • Mercury SmartCraft
    Mercury Joystick Piloting
    • Compatible with Joystick Piloting for Sterndrives (Axius)
    Sterndrive: Mercury Bravo One X
    • 1.36, 1.5, 1.65
    Sterndrive: Mercury Bravo One X SeaCore
    • 1.36, 1.50, 1.65
    Sterndrive: Mercury Bravo One XR
    • 1.35, 1.50
    Sterndrive: Mercury Bravo Two X
    • 1.50, 1.65, 1.81, 2.00, 2.20
    Sterndrive: Mercury Bravo Two X SeaCore
    • 1.50, 1.65, 1.81, 2.00, 2.20
    Sterndrive: Mercury Bravo Two XR
    • 1.65
    Sterndrive: Mercury Bravo Three X
    • 1.36, 1.50, 1.65, 1.81, 2.00, 2.20
    Sterndrive: Mercury Bravo Three X SeaCore
    • 1.36, 1.50, 1.65, 1.81, 2.00, 2.20
    Sterndrive: Mercury Bravo Three XR
    • 1.65, 1.81, 2.00
    Sterndrive: Mercury Bravo Three XR SeaCore
    • 1.65, 1.81
    Stampa Confronta con altri prodotti
